Route Entry

Entering the route

For this flight, there is a company route named GCCHAMD1. The MCDU pages for Inserting waypoints and Inserting airway paths should be referred to when no company route exits.
To load the company route, the pilot can do either :

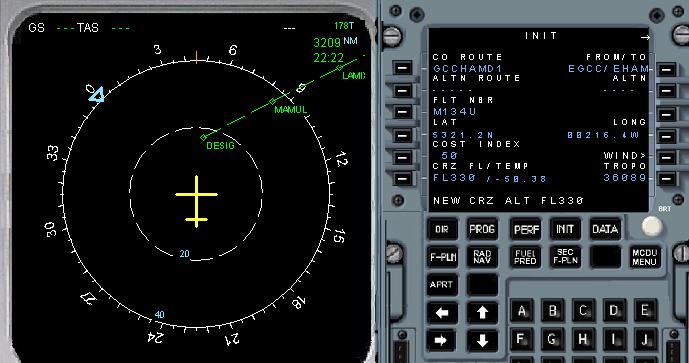

On the INIT page, write the origin/arrival (EGCC/EHAM) airport pair into LSK 1R

On the INIT page, enter the company route name (GCCHAMD1) into LSK 1L

Selecting the departure

This will bring up the route selection page. To enter the route, press Insert

The departure details are entered by selecting the departure airport on the flight plan page. This gives the later revision page for the departure airport. The runway, and SID may be selected from these pages.

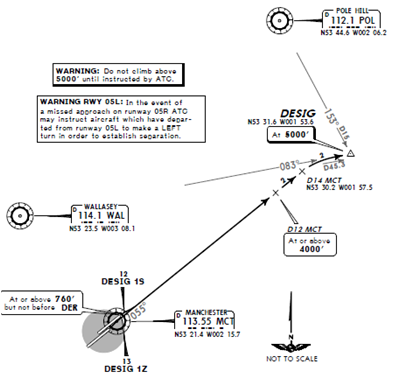

For this example the runway selected is Runway 06L and the departure SID is the DESIG 1S

Select the Flight Plan by pressing the F PLN button on the MCDU.

Select the LSK next to the departure airport, which should be EGCC

Select the LSK next the departure prompt on the LAT REV page

Select the LSK next the 06L runway prompt on the departures page

Select the LSK next the DESI1S SID prompt on the departures page.

Select INSERT.

Remove the Flight Plan discontinuity by the CLR button.

Selecting the Arrival

When returning the flight plan page several actions may need to be performed.

The system may not have had enough time to enter the flight plan and still show ERASE/INSERT prompt	Successive key presses at the insert prompt will load the SID completely	This is a feature of this version of the FMGS aid is not representative of the aircraft MCDU

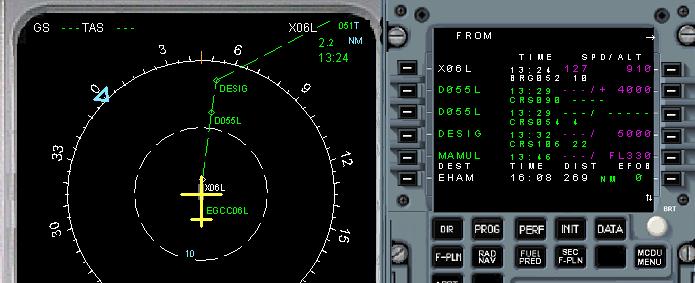

The flight plan discontinuity will need to be removed	Use the CLR button to delete the flight plan discontinuity	This is representative of the aircraft MCDU
There may now be a SID waypoint entry matching a route entry waypoint (same name).	Use the CLR button to delete the duplicate, taking care not to delete the SID version, as it may have a required constraint.	This is representative of the aircraft MCDU

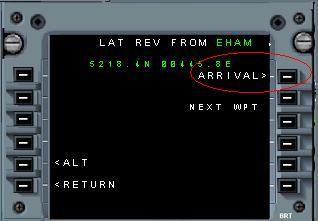

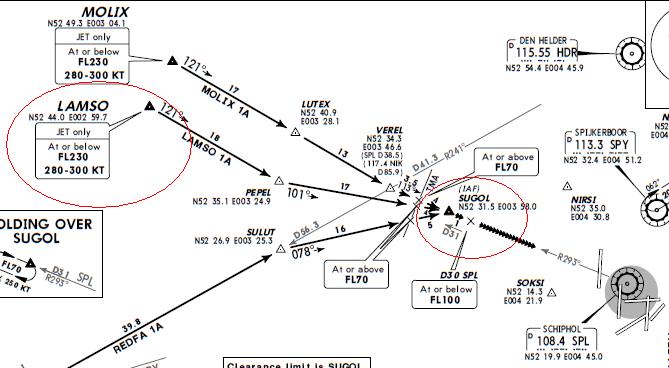

Selecting an arrival (STAR) is similar to selecting a departure SID. Select the arrival airport (EHAM) on the flight plan page and select the LSK to its left to bring up the lateral revision page for the airport. Then follow the steps through the arrival prompt. For this example the STAR chosen is the LAMSO 1A which takes the flight plan to the SUGOL waypoint

Select the arrival airport on the Flight plan page , either by using repeated AIRPORT button presses or by scrolling down the flight plan

Select the arrival prompt on LSK 1R

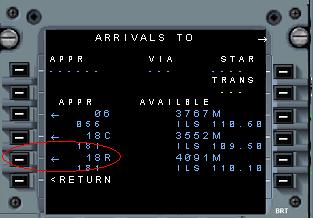

Select the LSK Left key next to runway 18R

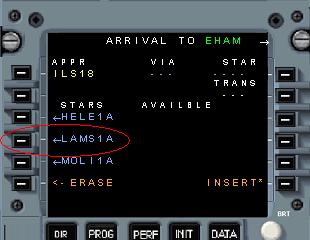

Select the LSK Left key next to LAMS1A STAR
You may need to scroll down the list if it is not being displayed

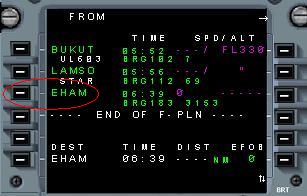

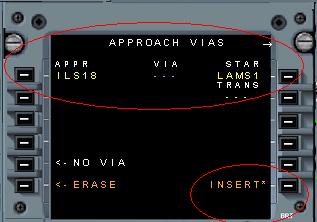

The arrival page should now show the Runway and STAR
Note that in this version of the FMGS Aid there is no VIA available

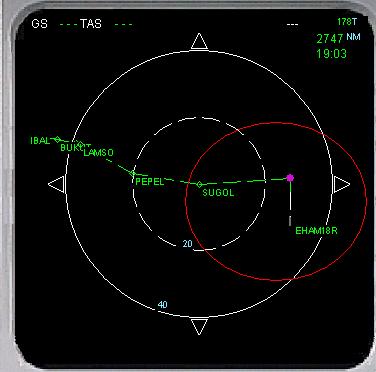

Insert the STAR and observe the plan ND centered over SUGOL
There may be duplicate waypoints as SUGOL may be in the flight pla as well as in the STAR. Delete the flight plan version of the duplicate waypoint using CLR

Adding waypoints

Reviewing the arrival information for EHAM, shows that following SUGOL, there are the approach waypoints of EH606, NIRSI and EH607 to enter. These waypoints are added to the flight plan by writing them into the scratchpad and pressing the appropriate LSK

Select the Flight Plan by pressing the F PLN button on the MCDU.

Move up/down the flight plan until the SUGOL waypoint and the next waypoint are showing.

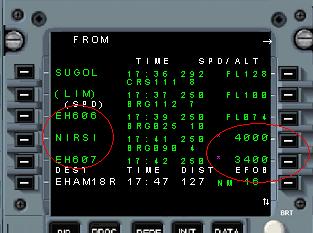

write "EH606" into the scratchpad.

Select the LSK after SUGOL. This will insert EH606 after SUGOL

write "NIRSI" into the scratchpad.

Select the LSK at EH606. This will insert NIRSI after EH606

write "EH607" into the scratchpad.

Select the LSK at NIRSI. This will insert EH607 after NIRSI

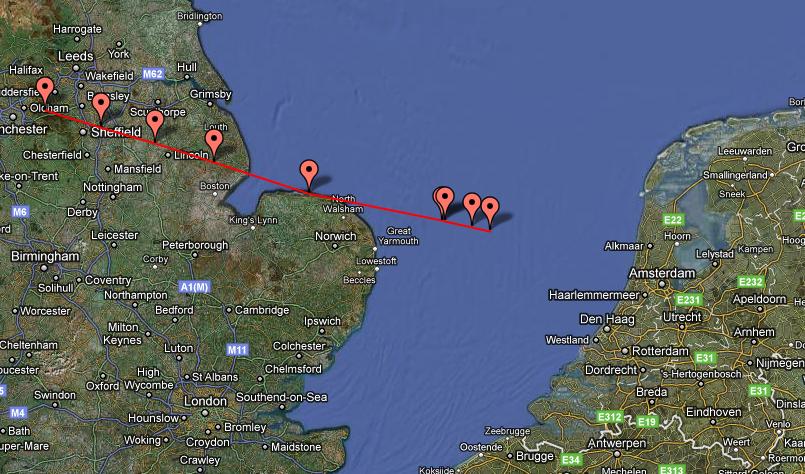

This gives a final route from EGCC runway 06L to EHAM runway 18R. The Map button on the FMGS Aid dialog can show the full route now contained in the MCDU
