Maps





Route



Current Position

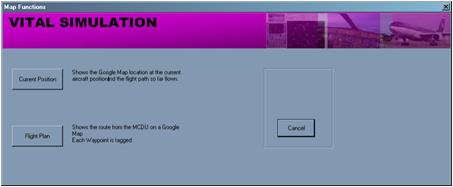

There are several types of map display available. The maps require on an active Internet connection to show a Google map of the route or of the flight path so far flown.

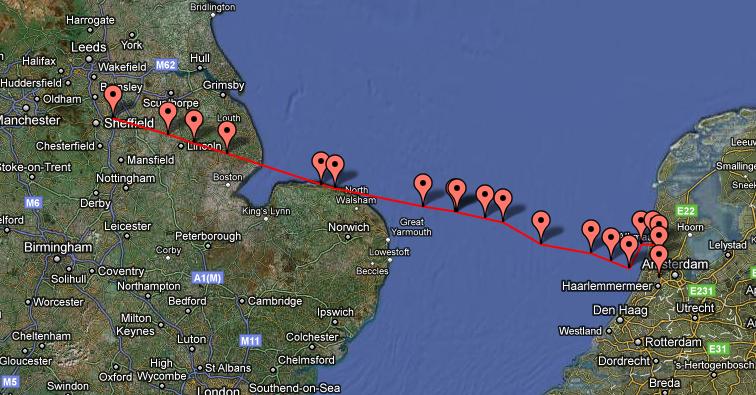

The route map shows the flight plan as entered in the MCDU. The waypoints are tagged and all the normal Google map controls are available.

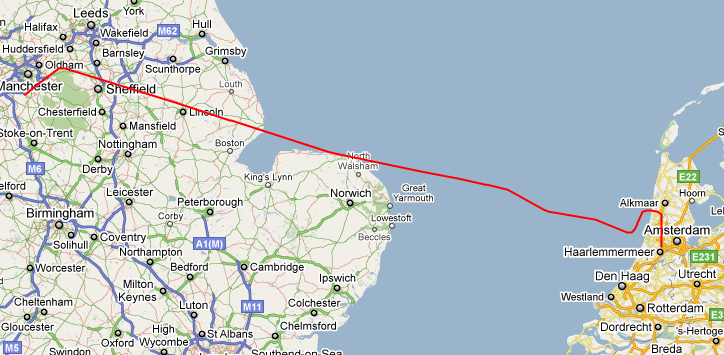

The flight path map shows the actual route that the aircraft has flown, at the point where the flight path map was selected.
