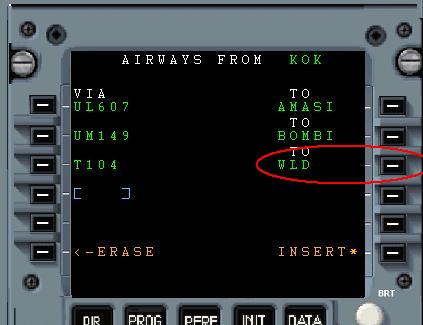

Enter the next airway into the scratchpad  and press LSK02 to enter it onto the page.

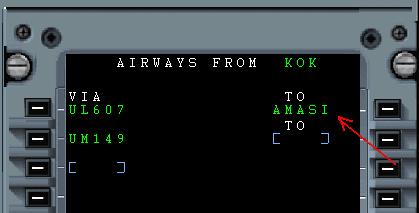

If an intercept is found, the intercepting way point is shown on the right. In this case AMASI.

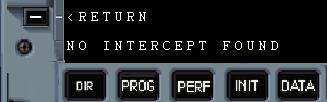

If no intercept can be found, then this message appears


Continue to enter airways as required

At the end, select Erase or ENTER to enter the flight plan into the route.


The entered flight plan will be a temporary one, where by a further confirmation will be required on the Flight Plan Page

Airways Page

The airways page allows the pilot to quickly build a route by stringing together up to 5 airways together. The input is : Airway / Waypoint

The airways page is accessed from the Lateral Revision Page of any waypoint in the flight plan .


Enter the first airway into the scratchpad and press LSK01 to enter it onto the page. If the way point does not exist on the airway the following message will appear
