ECAM control  Panel

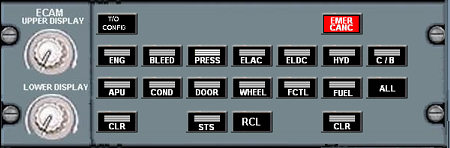

The System display can show the status of several systems. Each system may be displayed by pressing the associated push button on the ECAM control panel on the pedestal.

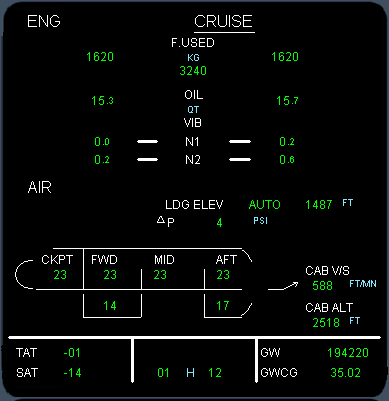

When no push button is illuminated the system display shows the default system page. This is the Cruise page, if the aircraft is airborne, or it may be the wheels page or doors page when the aircraft is in the ground.

Wheels Page

Status Page

Engines Page

Doors Page

Bleed Page

Air Conditioning Page

Cabin Pressure

Electrical AC page

Electrical DC Page

CB page

Flight Controls Page

APU Page

Fuel Page

T/O Config

The T/O configuration button is used to test the take off configuration state of the aircraft. Any incompatibility will be highlighted in the ECAM.  The button effectively mimics the thrust levers being pushed forward to the T/O settings.

Emergency Cancel

The emergency cancel button silences the master warn/caution aural signals.

CLR

The clear buttons, sequence the ECAM pages when a fault has been recorded. They also scroll the ECAM messages

So that lower ECAM messages may be seen.

RCL

The Recall button removes the scroll position set by the CLR buttons and recalls the ECAM messages from the top.

Display Brightness knobs

The screen knobs increment./decrement the EWD and SD display screen brightness. When turned fully left they switch off the relevant display.
