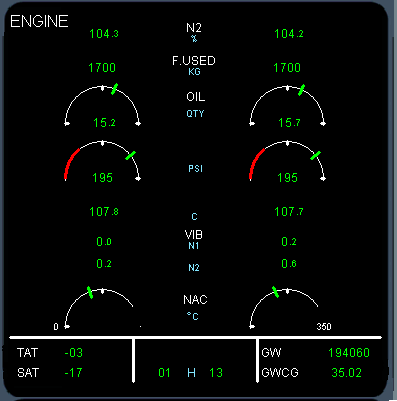

SD : Engines page



Next







Previous







Cruise
Doors

The Fuel Used is displayed at the top of the engine system page



The oil quantity is measured in Quarts.



The oil pressure is measured in PSI.



The N1 and N2 vibration counters are displayed at the bottom of the system page. They pulse if the value becomes excessive

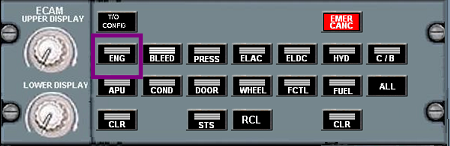

Pressing the ENG push button on the ECAM Control panel will produce the Engines display on the System Display.





The Engines display will automatically be shown on the System Display when :





The Engine Start switch is selected to IGN





Thrust levers placed in a take off position
