SD : Fuel page



Previous







Wheels

Powered and pumping



Fuel Pumps



Powered and not commanded to pump

Powered and low pump pressure



LO



Not Powered ( OFF )

Fuel flowing



Blocked

Closed



Valve in transit

LP Valves



Transfer Valves



Trim Tank ISOL Valve



Automatic Transfer



Manual Transfer



Abnormal

Fuel flowing



Isolation valve closed

Abnormal valve open but no fuel flow



Abnormal valve closed

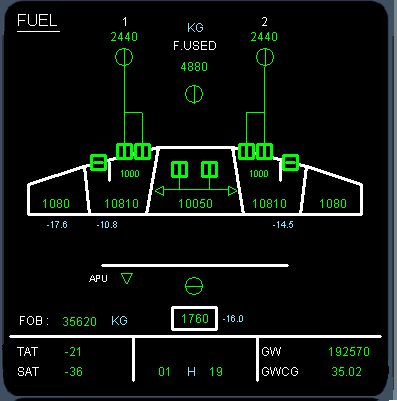

Pressing the FUEL push button on the ECAM Control panel will produce the Fuel display on the System Display.





Tanks



The fuel tanks are outlined in white. There are an inner and outer tank on each wing half, and for the A330-200 one center tank. The current fuel quantity in Kg are displayed in each tank. The Inner tank have a collector box which also displays its contents. Note that the contents of the collector tank is already accounted for in the quantity value for the inner tank.
