SD : Doors page



Next







Previous







Engines
Cb

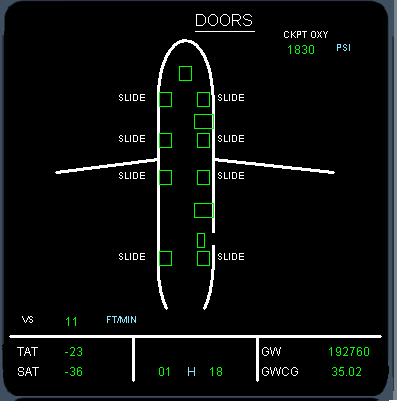

This Doors page is automatically displayed when the aircraft is on the ground and the engines are not running.. It is t he default page in this phase of flight



When on the ground an open door is indicated in amber.  If this indication occurs in flight, it will cause an amber caution and the flight crew will be advised to monitor the cabin pressure and altitude.



A closed and locked door is indicated by a Green square



An open door is indicated by a solid amber square



A white “SLIDE” indication appears when the door’s slide is armed.



The pressure of the Oxygen system is shown on the top right hand side. This is the oxygen in that would be used in an emergency when the cabin oxygen masks are deployed.



When the aircraft is airborne the cabin altitude rate is shown in the bottom left hand corner. .



Pressing the Door push button on the ECAM Control panel will produce the Doors display on the System Display.
