SD : ELAC page



Generators



Busses

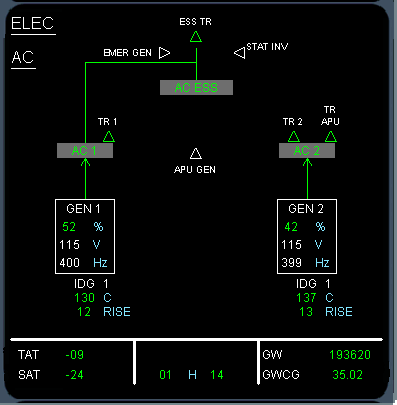

The generator display shows the percentage load, the voltage and the frequency. These values are green when within nominal range, otherwise they appear amber





The IDG shows the IDG temperature and the rise in IDG oil temperature from inlet to outlet.





The electrical busses are shown as grey boxes. They are indicated by green test if they are powered else by amber text if they are not live.





Battery



The battery boxes show Volts and load in amps. They may also show the OFF indication if the battery is selected off





Static Inverter



The static inverter box shows voltage and frequency, only when it is active.





Connection Lines



The ELAC and ELDC system pages show what is connected using green connection lines. The electrical configuration mat be changed automatically and these lines show the current configuration





Next







Previous







Pressure
Elex DC

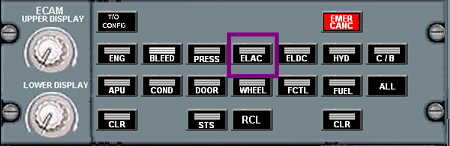

Pressing the ELAC push button on the ECAM Control panel will produce the Electrical AC display on the System Display.
