SD : Air Conditioning page



Next







Previous







Hyd
Cruise

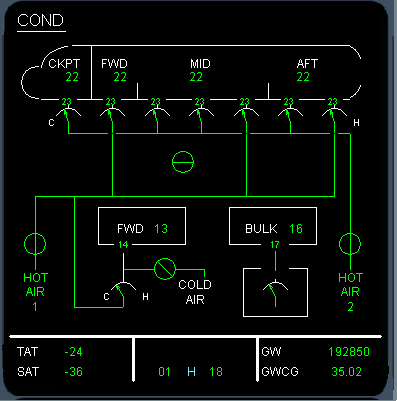

Pressing the COND push button on the ECAM Control panel will produce the Air Conditioning display on the System Display.





Air Trim Valves



The Air Trim Valves show the amount of hot air being vented into the duct. The valve is fully shut when shown to the left, and fully open when shown to the right.

The duct is feeding bleed air from the PACKS together wit the hot air being metered by the valve. The resulting duct temperature is displayed above the valve in green.

Hot Air Valves



The Hot Air vales show the status of the Hot air valve that allows hot air from the Engine or APU bleed ducts. The Hot Air valve is operated from the overhead Air panel using the Hot Air push buttons.

Zone Temperatures



The fuselage is split into 4 zones, Cockpit and 3 cabin zones. The Zone temperature is shown in each of the corresponding zone positions.

Although the cargo area is split into 3 sections, the forward, aft and bulk sections. However, only the Forward and Bulk sections have temperature displays.
