The possible revisions  available are :







Speed limit values





Speed constraints





Altitude constraints





Time constraints





Wind values





Step alts





Not all revisions  are available for all waypoints.







Page Prompts



WIND

STEP ALTS

RETURN

Calls up the wind page. The wind page displayed is dependant upon the flight phase of the waypoint



Calls up the Step Alts page that allows the flight crew to enter step changes to the cruise flight level



Returns to the flight plan page



Constant Mach

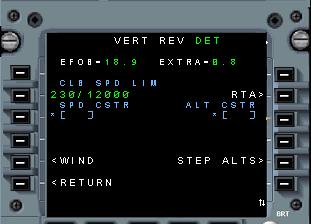

Vertical Revision page for a waypoint in the Climb segment

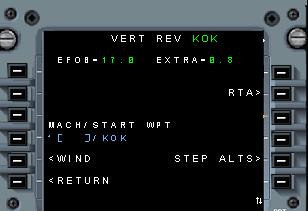

Vertical Revision page for a waypoint in the Cruise segment







Vertical Revision Pages





The vertical revision pages are accessed by pressing the tight LSK next to the waypoint in the flight plan page. The Vertical Revision pages contain menues of available revisions that can be made at the selected waypoint.
