System Display (SD)

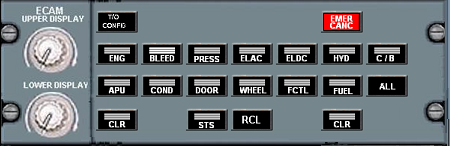

The System display can show the status of several systems. Each system may be displayed by pressing the associated push button on the ECAM control panel on the pedestal.



When no push button is illuminated the system display shows the default system page. This is the Cruise page, if the aircraft is airborne, or it may be the wheels page or doors page when the aircraft is in the ground.



Wheels Page



Status Page



Engines Page



Doors Page



Bleed Page



Air Conditioning Page



Cabin Pressure



Electrical AC page



Electrical DC Page



CB page



Flight Controls Page



APU Page



Fuel Page



Previous







EWD

Next







Flt Cntls

At the bottom of every SD page is permanent data display of:



Total Air Temperature (TAT) Degrees C



Static Air Temperature (SAT), also known as Outside Air Temperature (OAT), Degrees C



Time ( UTC)



Gross Weight (GW) in Kg



CG in % MAC



In addition the center of this fixed data display may also show the selected altitude in metric units if the Metric button is pressed on the FCU.  It is shown above the time display



Hydraulics Page
