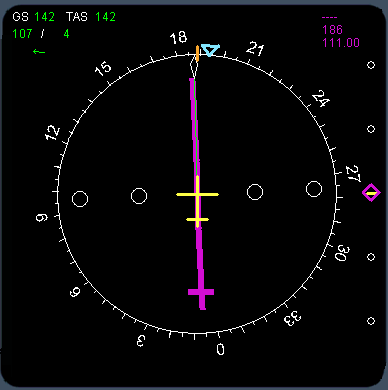

The ILS  display shows a compass rose with the selected ILS course and deviation bar.



The ILS may be selected on the MCDU RAD NAV page, but will also be automatically selected by the MCDU given the entered arrival runway.



The tuned ILS station ident, frequency and course



The Glides Slope (G/S) deviation scale and pointer



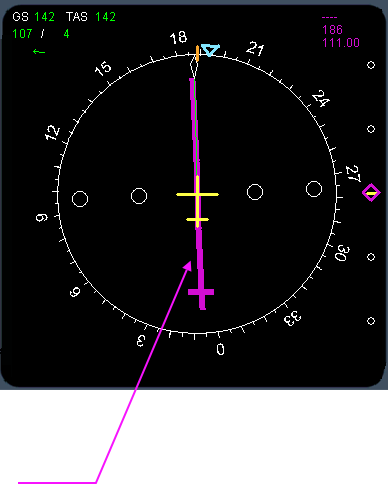

The ILS course pointer and LOC deviation bar



Ground Speed, True Air Speed, Wind direction a and wind speed



To display the ILS on the Nav Display, turn  the Mode selector knob on the Nav Control panel to ILS.
