ND : Arch

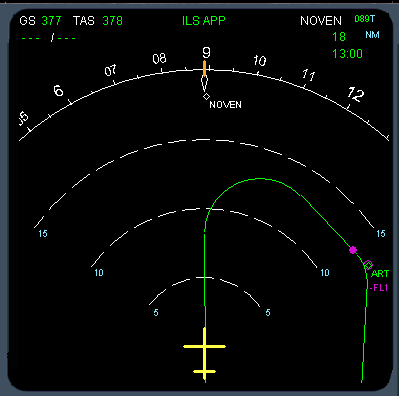

The Arch display shows an enlarged portion of the compass rose.



The radio station data, Nav route and Nav data can be shown on the display.



Next







Previous







Plan
ILS

10

20

40

80

160

320

The Range knob on the Nav control panel controls the range of the Arch display. The possible ranges are :
