ND : VOR

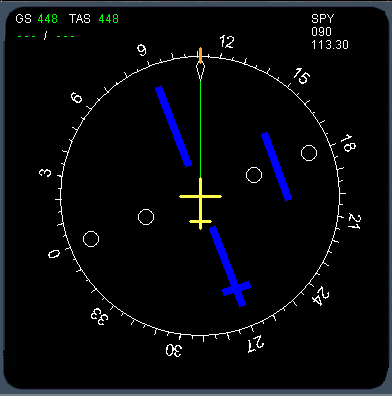

The VOR display shows a compass rose with the selected VOR course and deviation bar.



The VOR is selected on the MCDU RAD NAV page.



The Airbus aircraft does not have a dedicated VOR auto flight mode, and so a selected heading /track mode must be used to maintain the deviation to zero, if a VOR   track is required.



The tuned VIR station ident, frequency and course



The VOR course pointer and deviation bar



Ground Speed, True Air Speed, Wind direction a and wind speed



To display the VOR on the Nav Display, turn  the Mode selector knob on the Nav Control panel to VOR.
