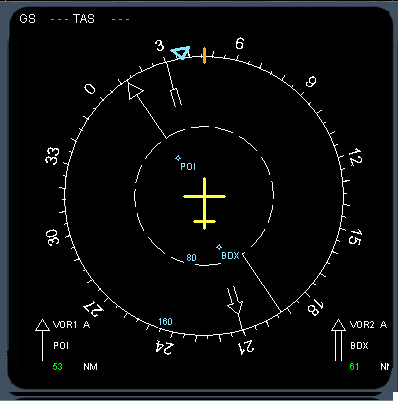

ND : Compass Rose



The compass rose display is a traditional 360 display with the display pointing in the aircraft’s direction.



The radio station data, Nav route and Nav data can be shown on the display.



The Blue Selected Heading bug is viewable only when the FMGS is not in the NAV mode.  The Heading bug is controlled from the FCU



The amber/yellow Lumbar line is the current aircraft's heading.



Next







Previous







Navigation Display (ND)
Plan

10

20

40

80

160

320

The Range knob on the Nav control panel controls the range of the Rose display. The possible ranges are :
