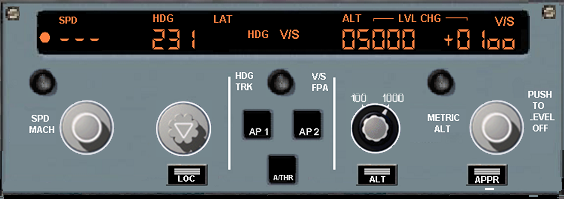

FCU Set Up
The FMGS final set up is to ensure that the FCU is set according to the SID and ATC clearance.
|
FD |
Both Flight Directors On |
|
Speed |
Speed knob pressed in and 137 / 152 showing on the speed tape |
|
Hdg |
Heading knob pressed in and NAV armed ( blue) showing in the FMA |
|
Altitude |
Alt knob pressed in and CLB armed showing in the FMA |
|
Altitude |
Altitude set at 5000 feet. |
|
QNH |
Correct QNH set on each Nav Control panel and on the standby Instrument |
|
NAV Switches |

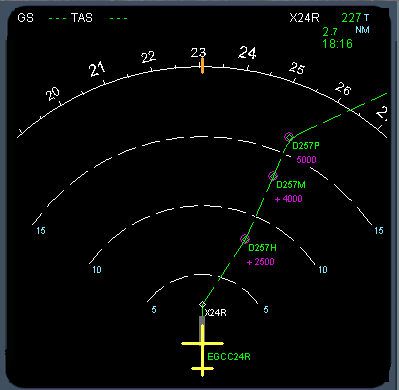

Nav switches on each NAV Controller set to VOR/VOR. Confirm on ND |
|
NAV Selection |
Constraints button pressed on each Nav Controller. Confirm on ND flight plan |
|
Center Mode button |
Selected to HDG- |
Next
Previous

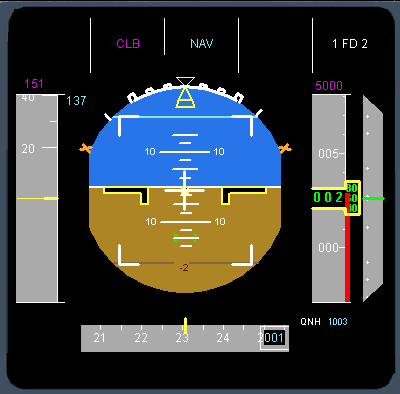

Instrument Checks
|
V Speeds |
137 / 151 on both PFD |
|
Flight Directors |
Both on |
|
FMA |
CLB and NAV armed on both PFD |
|
FMA |
1 FD 2 showing |
|
Altitude |
5000 ft in blue ( may sometimes be in Magenta if an FMGS constraint is lower the FCU Alt) |
|
QNH |
Correct QNH set on each Nav Control panel and on the standby Instrument |
|
NAV Switches |
VOR/VOR |
|
NAV Selection |
Constraints |
|
Fuel On Board |
Indicating in the region of 63 tons ( depending on how much the APU has now used) |
|
Gross Weight |
In the region of 221 tons , below Max Ramp weight |
Now ready for the Before Start Check List
