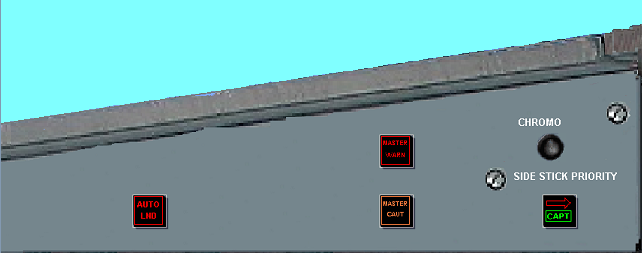

Left/Right Glare Shield

Master Warn Light

Momentary press push button. Pressing it will cancel the red master warning except in some cases.

Set when the ECAM detects a failure that require immediate flight crew action. The light is also accompanied by an aural warning sound.

MASTER

WARN

Master Caution Light

Momentary press push button. Pressing it will cancel the red master warning except in some cases.

Set when the ECAM detects a failure that require flight crew attention. The light may also be accompanied by an aural warning sound.

MASTER

CAUT

Auto Land Light

Set when the aircraft is more than ½ dot error on the glide slope below 200 ft radio altitude, or loss of both A/Ps during approach.

AUTO

LAND

Side Stick Priority Light

Set when the flight control system is accepting the side stick commands from the Captains side.

CAPT

Set when the flight control system is accepting the side stick commands from the First Officer side.

F/O

CAPT

Chromo button

Pressing this button starts the stop watch function of the clock. The value of the stop watch is shown the corresponding Nav Display.
