PFD : ILS indications

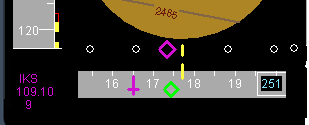

During approach, the PFD can show the ILS Localizer and G/S deviation scales. These scales are selected by the LS push button on the their respective Nav Controller.



LOC scale



The ILS LOC scale information is displayed abve the heading tape when the selected ILS is within range and the LS push button on the NAV control panel has been pressed.



G/S scale



The ILS G/S scale information is displayed to the left of  the Altiude tape ( replacing the vertical deviation if in decent)  when the selected ILS is within range and the LS push button on the NAV control panel has been pressed.
