Flight Preparation (Engine Start)
Parking Brake On
Engine fire warn test Done
Ensure that the aircraft is completely ready for engine start:
Auto Start
Engine master switches are off
Manual engine start buttons are off
Engine start knob is in normal position
The FADECs take care of the engine start. They control the Starter Valve, fuel flow, etc and ensure against over temperature (EGT). For an automatic engine start, select the starter knob to the IGNITION position.

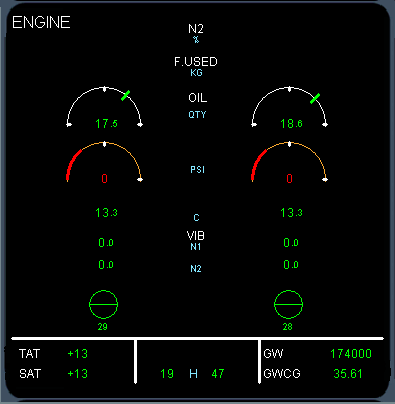

The system display will automatically change to show the Engine system display. The display changes back to the Doors page, if the master switch is not selected within 10 seconds.
Ensure that there is sufficient starter air pressure shown below the Starter Air SOV displays. The starter air pressure should be about 30 psi. The APU bleed should be supplying the air pressure
APU running
APU Bleed air selected

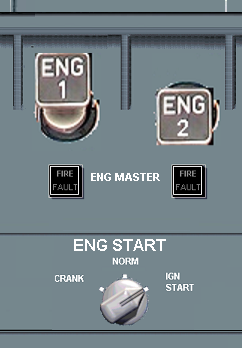

Select Engine 1 Master switch to ON. This begins the engine start sequence.

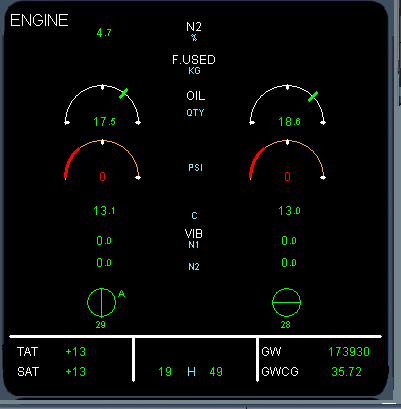

The starter air valve opens, and the Igniter indication is shown. The igniter are swapped from A to B etc every start.

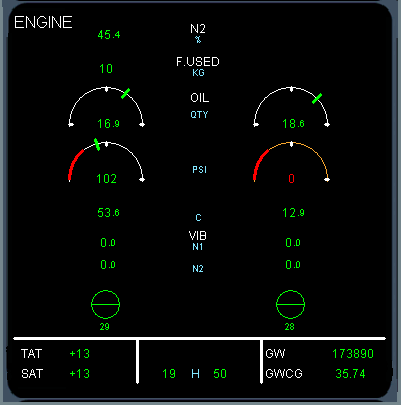

The N2 value begins to increase, until about 30% N2, when the fuel flow is started
The FADECs close the starter air valve when the engines are stable at about 21% N1, 47% N2
Next
Previous
After both engine start, the engine start knob should be returned to the normal position.
Ensure the flight plan is fully entered before engine start as the INIT page on the MCDU is un available after engine start.
