Vertical Profile

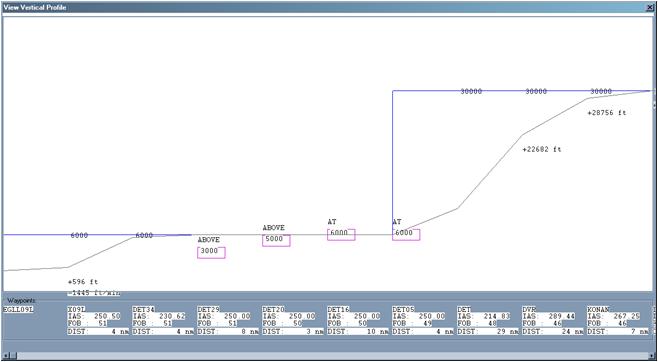

The Vertical Profile window, shows a representation of the flight plan entered into the MCDU. It shows the estimated altitudes, target altitudes, any constraints, fuel at waypoint and distance between waypoints.

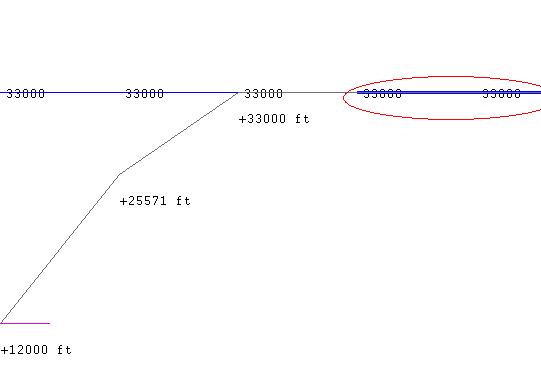

A constant mach section is highlighted in a thick blue line.
