Pneumatics : Air Conditioning Indications

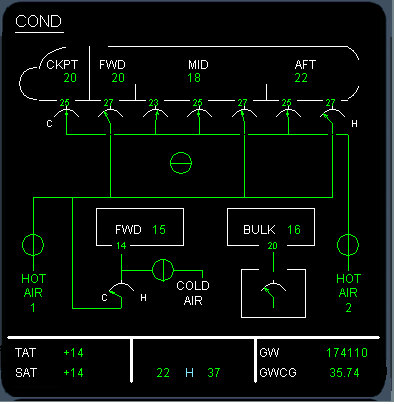

The Air Conditioning indications are displayed on the COND system display page. They show the status of the Hot Air valves,  Air trim valves and the temperatures of the zones.

Air trim Valves



Duct Inlets  Temperatures



Cockpit



Forward Cabin



Mid Cabin



Aft  Cabin



Hot Air Valves

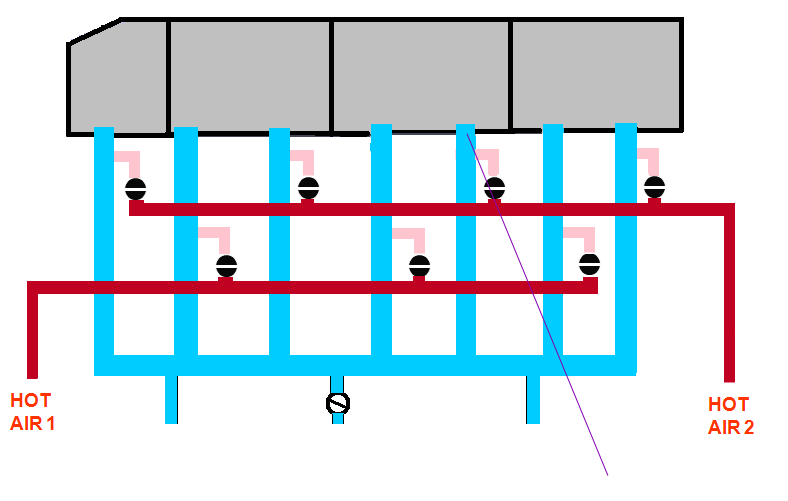

On the Air Conditioning System display, the cool PACK air is not shown. Only the Hot air lines are shown, together with their air trim valves.
