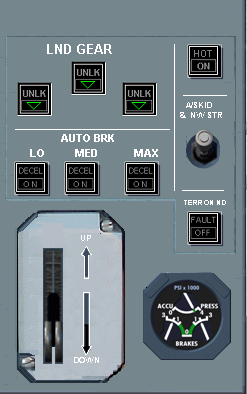

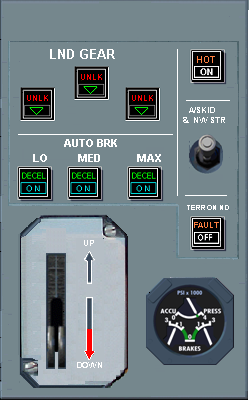

Landing Gear Panel



Landing Gear Lever



Landing Gear raised





Up



Landing Gear down





Down



Undercarriage not down and locked below 800 ft radio  altitude





Triple Gauge



Shows the brake pressure and the blue accumulator brake pressure.



The blue accumulator break pressure is normally at 1000 PSI, if it becomes lower, then the blue electric hydraulic pump may be operated to return the accumulator pressure to the nominal.



Auto Brake

Associated auto brake level selected ( button is a momentary press )





In



Required aircraft deceleration rate being achieved.





DECEL



Associated auto brake level armed.





ON



Landing Gear Lights



Landing Gear down and locked





Landing gear unlocked





Brake Fans selected  on





In



One or more wheel temperatures above 300 deg C





HOT



Brake fans on





ON



Brake Fan



Nose wheel steering selected Off





Up



Nose wheel steering switch



Nose wheel steering selected On





Down
