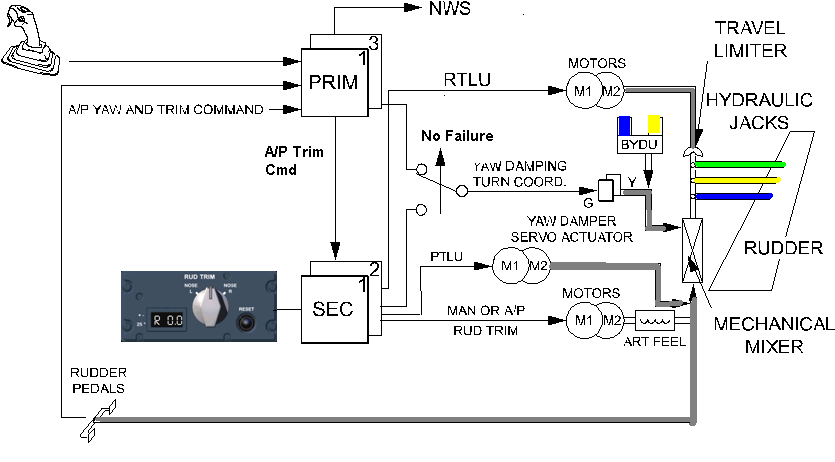

Yaw control is provided by one rudder surface (deflection ± 31.6°). The rudder is operated by three independent hydraulic servo-controls, with a common mechanical input. This mechanical input receives three commands :













Ruder pedal



The mechanical input is limited by the Travel Limitation Unit (TLU) as a function of airspeed in order to avoid excessive load transmission to the aircraft. This function is achieved by the SEC computers.



Yaw damper commands are computed by the primary or secondary computers





The A/P commands are processed by the PRIM computers and are transmitted to the rudder via the yaw damper and the rudder trim actuator.







Ruder Trim actuator



Yaw damper
