Airbus MCDU Aid

The Vital Simulation Airbus MCDU Aid is designed to be an introduction to the Airbus FMGS and MCDU, it will introduce the user to the way in which Airbus A319,A320,A321,A330 and A340 aircraft have their flight plans entered, and navigated.









The Airbus MCDU Aid runs in a near real time manner closely simulating the performance of a real Airbus MCDU. It is designed to introduce the concepts of the Airbus MCDU and allow users to enter flight plans, simulate flying them and modify them on route. It is not a certified training aid, but does have considerable capability of demonstrating the use of the Airbus MCDU found in the Airbus FBW aircraft.

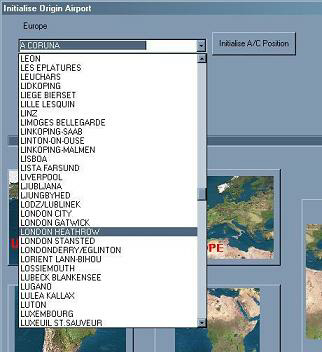

Select route origin and destinations from a world data base of airports

The worlds airports database is supported by a full runway data base allowing accurate runway and SID departures to be entered and viewed.



Arch, Rose and plan view NAV displays, showing all waypoints, VOR, NDB, airports and route information are available.





Useful controls to speed up the flight (Speed x N) , Jump to Top Of Climb (TOC) or Jump to Top Of Descent (TOD) exist.

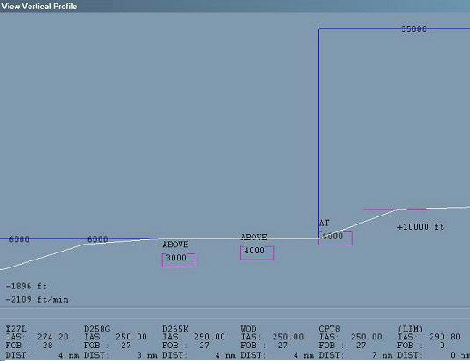

A Vertical Profile dialog may be used to visualize the vertical profile of the designed route.  This can be useful to see the differences step altitudes may make, or what the descent profile may look like.

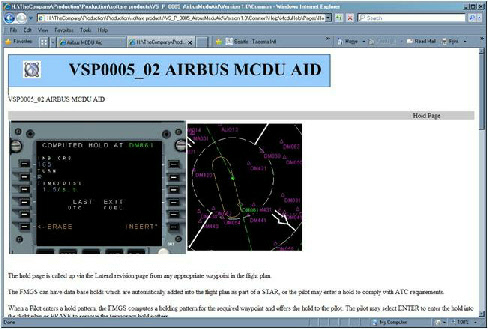

A full HTML based help system allows the user to gain knowledge of all aspects of the Airbus MCDU, from data entry to setting constant mach segments, to diverting to an alternate airport and more.

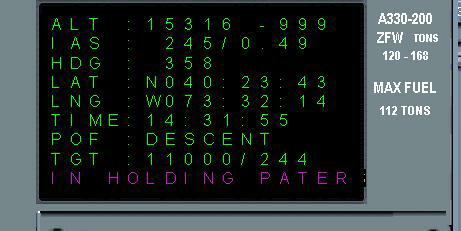

An information screen exists to show the position, altitude and speed of the simulated aircraft against the MCDU target altitudes and speeds, as well as useful information about route discontinuity or hold status.









Enter Company routes, create routes, enter SIDs and STARs , direct To





Use Lateral Functions , Vertical Functions, Alternate destination , in flight route modifications







INIT data entry, performance information, fuel predictions, constant Mach settings





Progress pages, report pages, flight plan print pages,





Data pages, position monitoring, Equi - Time point page





Easy to use controls, initial position, jumps, Speed x N. Flight plan delete





Ability  to simulate the flight of the entered route, view and control the Nav displays





Complete free play Simulated Nav Control Panel, Mav Display and MCDU





The Airbus MCDU Aid is a  Microsoft Windows dialog application that requires nothing more than a normal Windows PC or laptop.No need to run any other flight simulation. This is an all in one  MCDU simulation. It now incorporates the MCDU Guide











FUNCTIONAL

NAV Radios ILS tuning

Manual and Auto ILS tuning available

CRASH PROOFING

Protection for atof function

prevents possible program crash when enter values

CORRECTION

Step Descent in cruise

Now outputs V/S cmd to the A/P

CORRECTION

T/C duplications

Can only be one T/C in flight plan

FUNCTIONAL

Pre select speeds

Pre select climb and cruise speeds now functional

CORRECTION

Deg sign used for Flap values

On Approach page

CORRECTION

Ability to change Descent spd prior to DESCENT

On Descent page

FUNCTIONAL

Descent Intercept monitoring Added

Shows on the ND

FUNCTIONAL

Climb / Descent profiles matching the A330-200 simulation

Compatible to A330 sim

CORRECTION

Climb / Descent Transition altitude used for altitudes in Flt plan

Was only the origin transition alt, now both

CORRECTION

T/D waypoint has the target speed for the previous waypoint

No speed change when T/D is the TO waypoint

Modification History for Airbus MCDU to v 1.3

Designed for Familiarization of the Airbus MCDU, ND and Nav Control Panel Must not be used for actual aircraft operations

CORRECTION

Ensure that all waypoint's offsets are cleared

Small possibility of some waypoints not clearing their offsets

ADMIN

Organized deliverable to program files/vitalsimulation

Now able to acquire future updates

CORRECTION



MCDU Up/Down scroll push buttons operate as per Airbus and not standard keyboard

Up arrow scrolls flight plan down

CORRECTION



Duplicate Names list shows last item



The very last southern item wasn’t displayed

CORRECTION





Fix database Latitude sorted and corrected

Some southern latitude fixes had zero Latitude set

Airbus MCDU to v 1.4

Airbus MCDU to v 1.5

CORRECTION

ILS indictor now in magenta

Was green

FUNCTIONAL

Mag heading input for approach performance page

On approach page

FUNCTIONAL

Step alt data on Cruise Performance page



FUNCTIONAL

Route data added to plan page
