Air Panel : Air conditioning

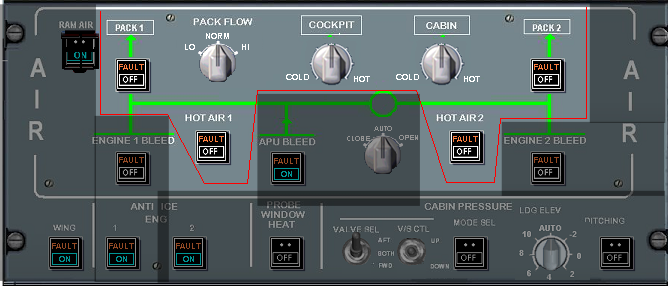

The controls for the air  conditioning are on the overhead air panel. They consist of the temperature controls and the hot air inlet valve buttons.



Hot Air buttons

Associated Hot Air valve opens to allow hot air from the bleed to be used





In



Associated  Hot Air valve failure





FAULT



Associated  Hot Air valve is closed





OFF



Associated Hot Air valve closes





Out



PACKS button

Associated Pack valve opens



In



Associated  Pack  valve failure





FAULT



Associated  Pack  valve is closed





OFF



Associated Pack  valve closes





Out



PACK flow knob

Temperature knob

PACK flow set to low flow rate, suitable for when there are few passengers



LO



PACK flow set to Normal flow rate



NORM



PACK flow set to High flow rate, required when the aircraft is in very hot climatic conditions

.

Note that when the APU is supplying the bleed air, the PACK flow is set to High regardless of this knob setting

HI



The temperature knob has 7 position from 18 deg C (coldest setting) to 30 deg C for the Hottest setting. The mid point is 24 deg C.



There is a temperature knob for the cockpit and one for the cabin. Note that the cabin staff can also modify the cabin’s three zones (Forward, Middle and Aft ), from their cabin equipment.
