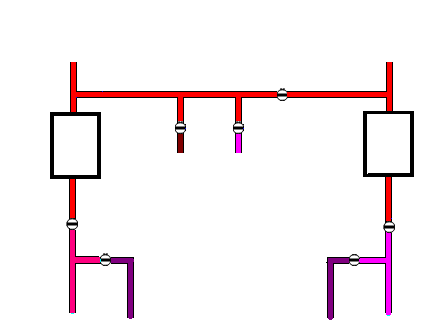

Pneumatics Bleed Air System Controls



APU

Bleed

Air



Eng 1 Bleed Valve



Cross bleed Valve



Eng 2 Bleed Valve

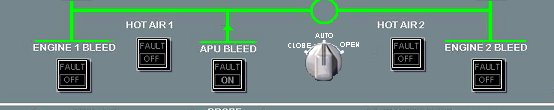

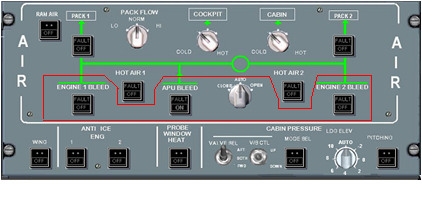

The controls for the bleed system appear on the Air panel overhead. The controls are the Bleed On/Off buttons for the two engines and APU.  And the cross bleed valve control.



Engine Bleed On/Off buttons

Associated bleed valve is controlled by the BMC.





In



Associated bleed valve failure





FAULT



Associated bleed valve is closed





OFF



Associated bleed valve is closed.





Out



APU Bleed On/Off buttons

Associated bleed valve is controlled by the BMC.





In



Associated bleed valve failure





FAULT



Associated bleed valve is open and APU supplying bleed air





ON



Associated bleed valve is closed.





Out



Cross bleed Knob

Cross feed valve closed regardless of the BMC





Closed



Cross feed valve open regardless of the BMC





Open



Cross feed valve under the control of the BMC





Auto
