Air Data Inertial Reference Unit (ADIRU)

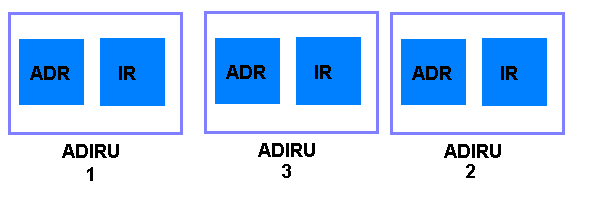

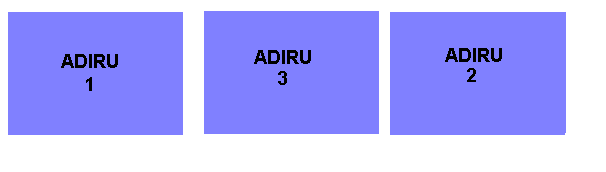

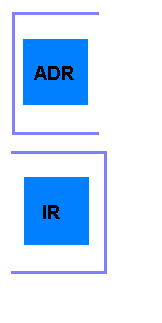

The A330 has 3 identical ADIRUs. They are numbered 1, 2 and 3. Each ADIRU contains an Air Data Reference unit and an Inertial Reference unit. These units are separate and a failure of one will not cause a failure of the other.





Normally the ADIRU 1 supplies data to the Captains displays and ADIRU 2 supplies data to the F/Os displays. Either set of displays can receive its data from ADIRU 3 via the EFIS switching panel.





Airspeed, VCAS, Mach, V true





Altitude , Barometric, corrected and un corrected





Over speed warnings (VMO, MMO)





Angle Of Attack (Alpha)





Heading





Attitude, Attitude rates



Track





Flight Path Angle





Accelerations



Aircraft position





Ground Speed





The values created by the ADIRU are recived by other aircraft equipment most notably the FMGS.
